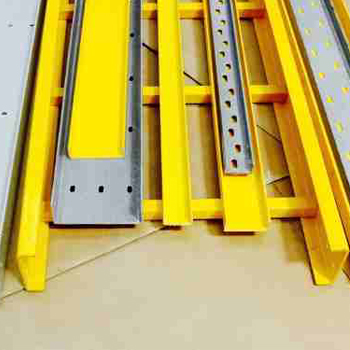

Arabian Gratings exports and supplies a comprehensive range of FRP and GRP products to global clients from distinct industries. In the FRP cable tray range, there are two designs- FRP Ladder Type Cable Tray & FRP Perforated Cable Tray
Manufacturing Standards
Arabian Gratings cable trays are made as per the international standards BS50085, NEMA VE 1, BS/IEC 61537, ASTM & UL.
Supplied in (a) FRP/GRP (b) Stainless Steel.
Cable trays & Ladders supplied in standard lengths of 2.44 & 3.00 Meters. Cable Ladders also available in special lengths of 3.858, 6.000 & 7.315 on request.
Cable Ladder
Cable Ladders Fabricated with Outside & Inside flange
Accessories
Standard Connectors, Vertical & Horizontal Adjustable Connectors, Hold Down Clamp, Fish Plate , Side Cover Connector, Neck Screw, Right Angle Connector, Bonding Jumper.
Cover Type
Plain Cover, Flanged Plain Cover, Louvered Cover & Flanged Louvered Cover (Thickness 1.0,1.2,1.5&2.0mm).
Electrostatic
Yes
Fiber-reinforced plastic (FRP) and glass-reinforced plastic (GRP) is the ultimate choice for cable trays. We at Arabian Gratings are masters in manufacturing GRP and FRP cable trays. Our range of FRP and GRP cable trays is vast and filled with qualities that cable trays should have in order to fulfill the purpose that they are created for. We are a renowned name among SAUDI top FRP cable trays manufacturers.
FRP Cable Trays & GRP Cable Trays Manufacturers
Pultrusion is a complicated process and you should always choose a trusted manufacturer who has a reputation to live up to. Arabian Gratings has delivered quality FRP cable trays to hundreds of clients. Our FRP and GRP cable trays have unparalleled quality and a list of loyalists.
FRP Cable Trays Manufacturers
A trusted supplier and exporter of FRP cable trays offering vast variety of FRP products and cable trays throughout the world. These products are lighter in weight and can be easily installed and transported.
Benefits Of FRP Perforated Cable Trays
All the FRP range of perforated products is corrosion resistant. These products are lighter in weight and can be easily moved and transported from one place to another. You don’t need earthing for these products. These are made of UV-resistant materials. The thermal conductivity is very low. These are halogen-free and non-toxic and have a long life cycle.

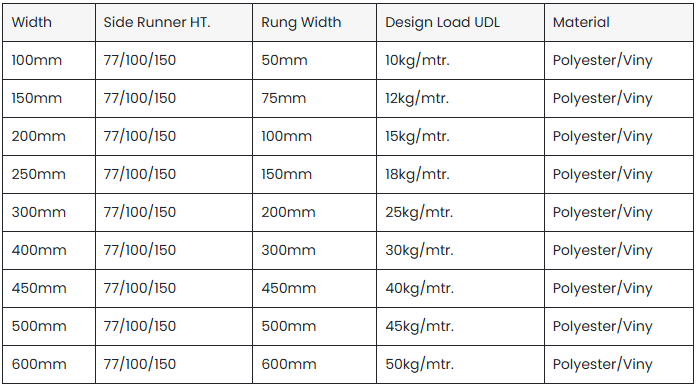

Standard specification is available as per below table
RP/GRP cable trays made by FTC is fabricated out of different pultruded sections of advanced polyester & vinyl ester resins, manufactured by an automatic extrusion machine.
FRP / GRP cable trays are a good replacement for G.I / M.S cable trays, which tend to corrode, erode, and spread heat thus leading to power interruptions.
On the other hand, FRP cable trays are safe, durable, cost-effective, and easy to install. FTC manufactures these cable trays as per NEMA / BIS / Consultants Specification.

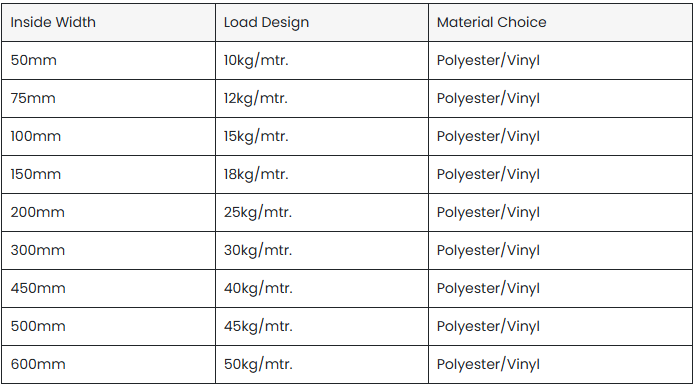

Standard specification is available as per below table
Width: 50/75/100/125/150/200/225/250/300/400 UPTO 1200 mm
Height: 50/75/100/125 & 150 mm
Thickness: 1/1.2/1.5/2 &2.5mm

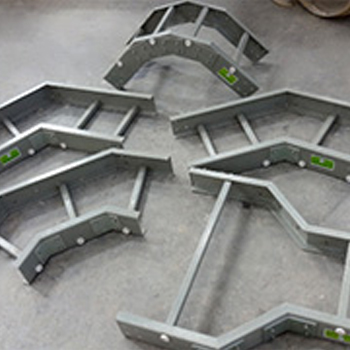

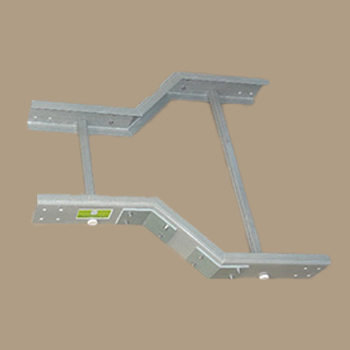

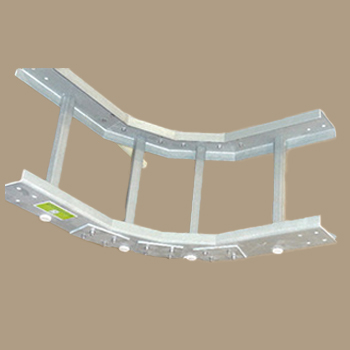

Horizontal Bend (90˚ & 45˚), 90˚ Inside & Outside Riser, Straight Reducer, Right Hand Reducer, Left Hand Reducer, Horizontal Cross, Horizontal TEE, Unequal Cross & TEE.
- Fire retardant
- Excellent weather ability – UV stabilized
- Non-corrosive
- Non erosive
- Non magnetic
- Easy to install
- Easy to transport
- Light weight
- Maintenance free
- Load bearing capacity
- Refineries
- Offshore platforms
- oil and gas industry
- Electricity distribution
- Chemical and more
- Footbridgeses
- Manufacturing
- Marine and shipping
- Effluent treatment plants
- Corrosion resistance
- Light weight so easy to move and place
- Excellent electrical insulation properties
- Very high strength-to-weight ratio
- No earthing required
- Very low thermal conductivity
- U.V resistant
- Impact-resistant
- Non-toxic
- Easy to install
- Long life cycle
